제품사양

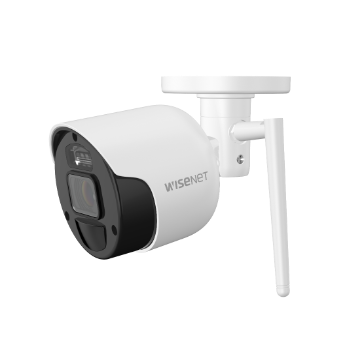

• Camera
  Model Name	SNC-79447BW
  Resolution	1920 x 1080
  Camera output	BNC
  Aperture	F2.0
  Min.Illumination	0Lux (IR-LED On)
  Night vision	40ft(12m) in total darkeness / 63ft(19m) in ambient lighting
  Field of view	Diagonal 105°
  WDR	D-WDR
  Digital noise reduction	3DNR
  Flikerless	Auto
  Day & night	Auto (True D&N)
  Power consumption	5.4W
  Dimension	Ø69.3 x H147.2mm (2.73" x 5.79")
  Weight	0.34Kg
  Operating temperature	-30℃ ~ +50℃ (-22° ~ +122°F) / Less than 90% RH
  Weatherproof	In/outdoor (IP66)
  Recorder
  Model Name	SNR-73207W1T
  Video Input	Wireless 4ch

• Codec	H.264/H.265
  Live frame rate	Max. 80fps@1080p
  Recording bandwidth	Max. 80fps@1080p
  Display out	HDMI, D-Sub
  HDD (Surveillance grade)	1TB surveillance grade HDD
  Recording mode	Manual, Schedule, Event(motion/PIR)
  Video search mode	Date/time, Event
  Motion detecting zone	Up to 4 areas
  Privacy mask	Up to 4 areas
  Backup	USB, dropbox
  Alarm notification	via E-mail
  Remote viewing software	App (Android/iOS), Webviewer (PC/Mac)
  Remote monitoring setup	QR code scan (mobile), DDNS (PC/Mac, Web)
  Max.remote users	7
  OSD language support	English, French, Spanish, Portuguese, German
  Power consumption	16W (2T)
  Dimension	W300 x H48 x D209mm (11.81"x 1.89" x 8.23")
  Weight	1.43kg
  Operating temperature	0℃~40℃ (+32°F ~ +104°F) / 20% to 85% RH
